Air conditioning for switchboards / Cooler 380W, PAD0380.01, Plastim
- Regular price
- 5.094,05 zł
- Regular price
-
- Sale price
- 5.094,05 zł
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

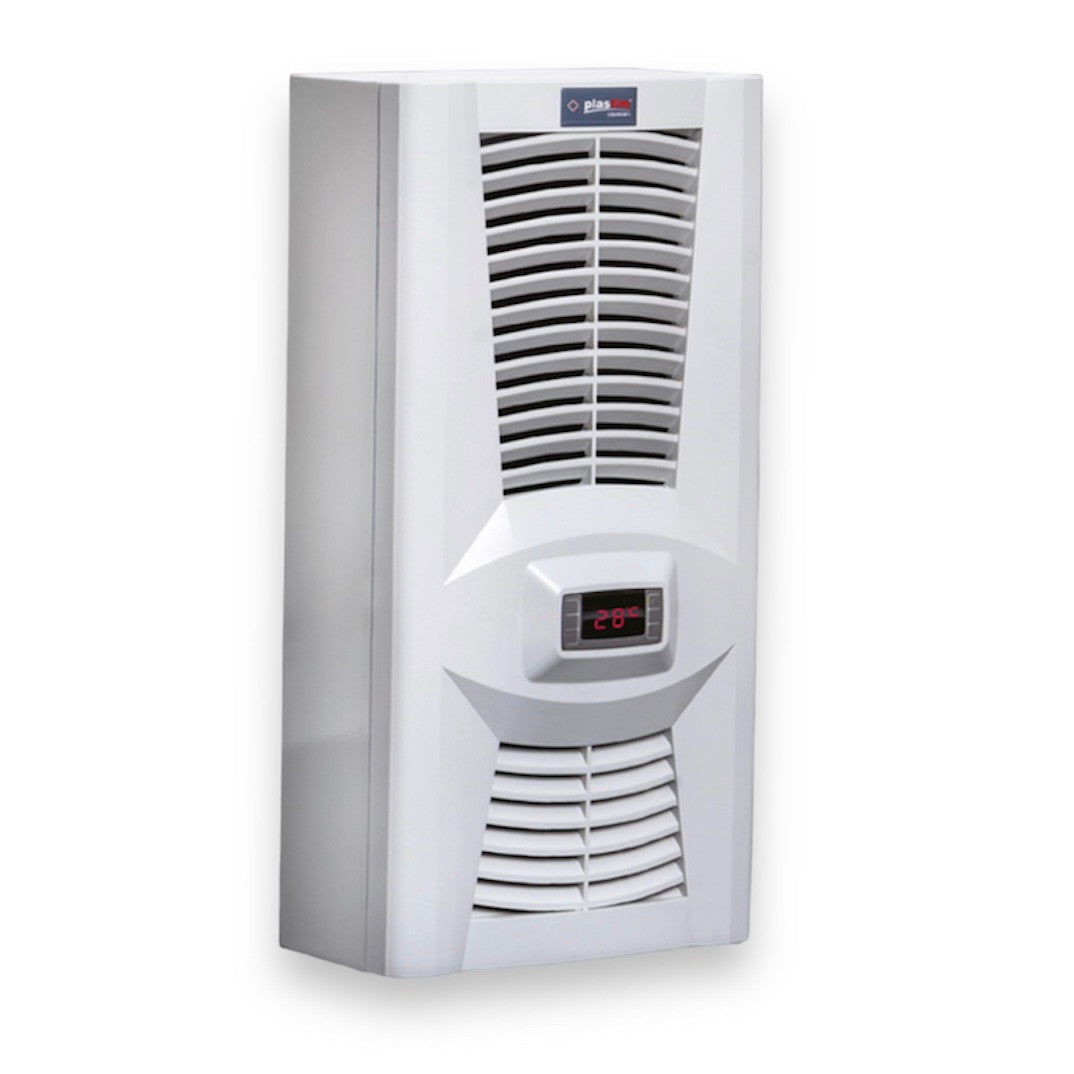

"Design Series" air conditioner for switchboards / cooling units 380 W / 1300 BTU for side or wall mounting on switchboards and automation panels.
The PAD0380.01 air conditioner (PLASTIM) for distribution cabinets is equipped with the latest HIGHLY open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the distribution cabinet door.
The set includes everything needed to install the air conditioner in the cabinet - gaskets, drain pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Fuse | 5A |
| Power consumption | 325W |
| Operating range | 0-55 °C |
| Factory setting of the thermostat | 35 °C |
| Difference | 4 °C |
| Max. air volume in the internal circuit | 340 m³/h |
| Max. air volume in the external circuit | 340 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Sound level | 75dB |
| Protection rating (inner circuit) | IP 54 |
| Protection rating (outer circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
