Air conditioning for switchboards / Cooler 550W, PAD0550.01, Plastim
Failed to load pickup availability
Online payment by card – after placing your order, you will be redirected to the payment gateway and you will receive payment confirmation by email.
Cash on delivery – payment will be made to the courier of the transport company in accordance with the payment terms.
Bank transfer – we will send a pro forma invoice to your email address no later than the next business day, which will include the account number for payment.
On an invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.
If you wish to use the latter two payment methods, please contact our manager who will provide you with instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, we do not charge any fees for returning goods.

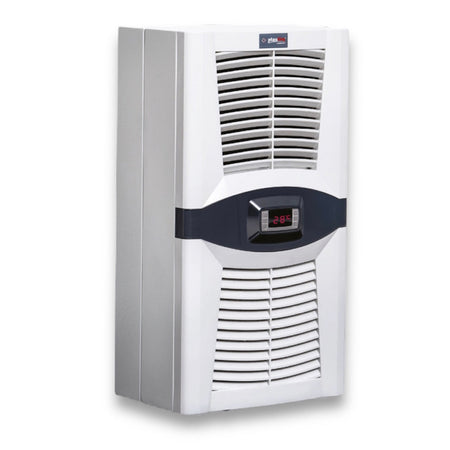

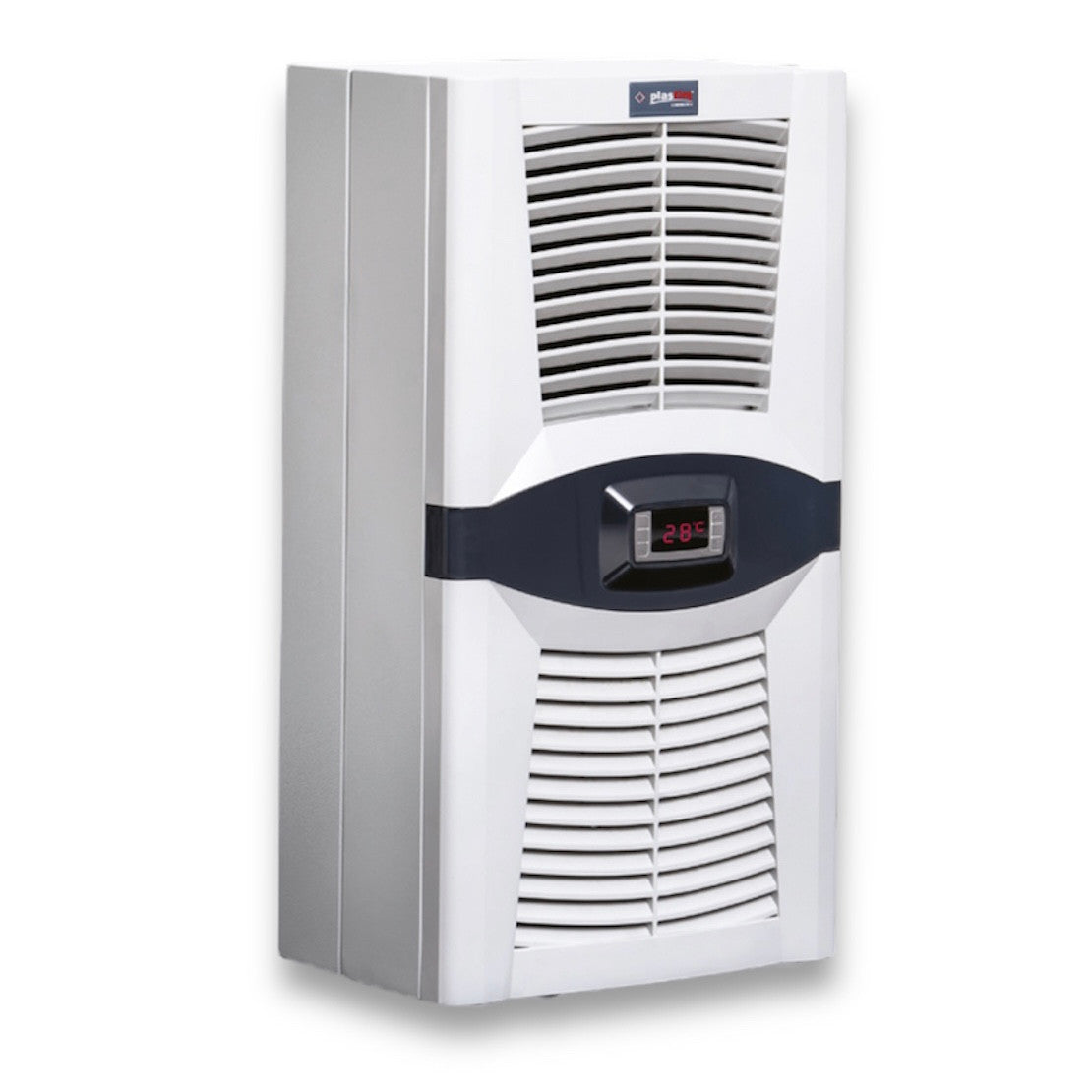

Air Conditioner "Design Series" for switchgear / cooler 550 W / 1900BTU for side or wall mounting on switchgear and automation panel.
The PAD0550.01 (PLASTIM) air conditioner for switchgear is equipped with the latest open-type rotary compressor from HIGHLY, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the switchgear door.
The set includes everything needed to install the air conditioner in the cabinet - gaskets, drain pipe, mounting screws, power connector.
TECHNICAL DATA | PAD0550.01 |
Cooling Capacity L35 / L35 | 550W / 1900BTU |
Operating Voltage | 230VAC |
Frequency | 50/60 Hz |
Starting Current | 1.2A |
Operating Current | 1.1A |
Fuse | 6A |
Power Consumption | 330W |
Operating Range | 0-55 ° |
Thermostat Factory Setting | 35 ° |
Difference | 4 ° |
Max. Air Volume Internal Circuit | 340 m³/h |
Max. Air Volume External Circuit | 505 m³/h |
Refrigerant Type | R134a |
Refrigerant Amount | 245gr |

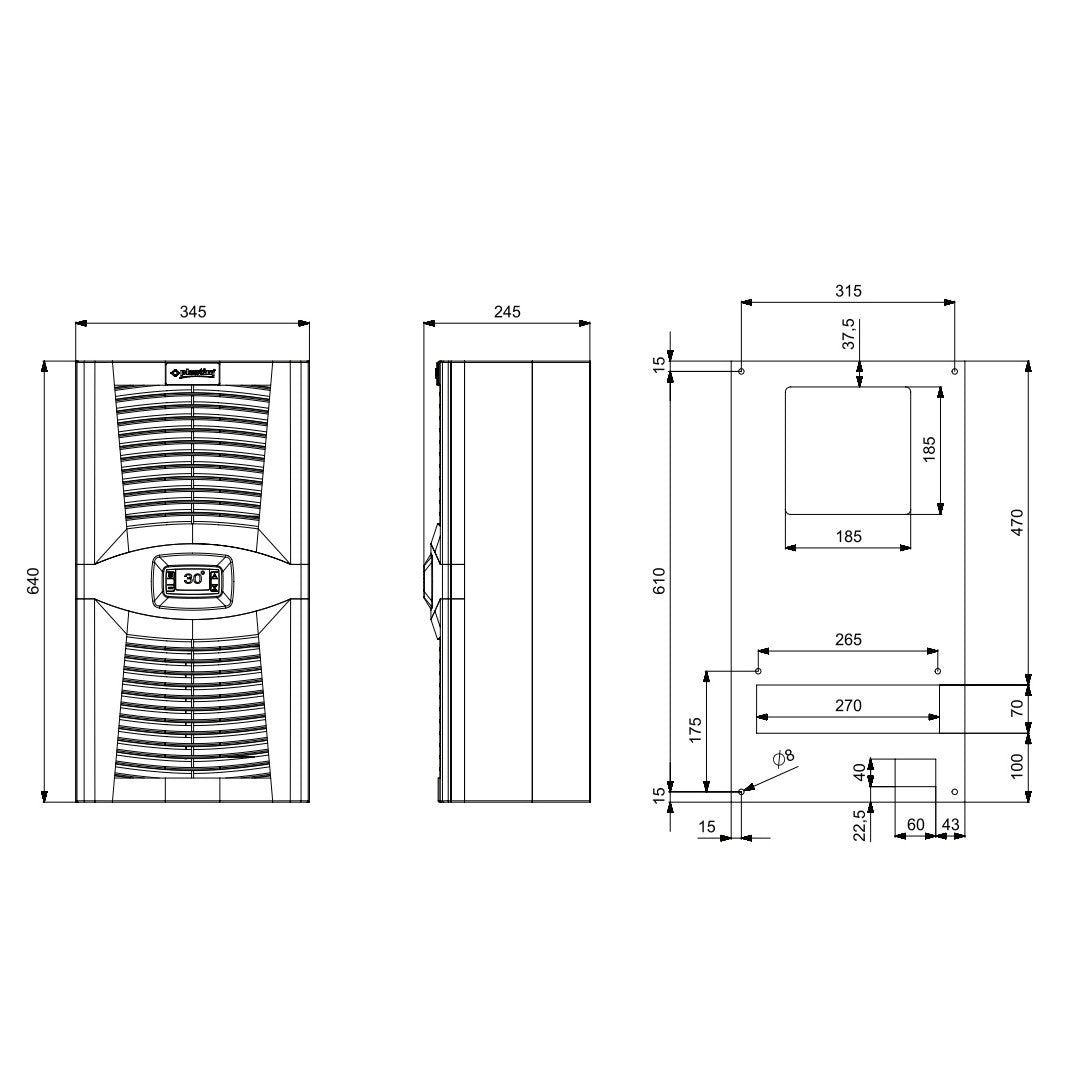

Dimensions | 640x345x223mm |
Weight | 27kg |
Sound Level | 76dB |
Protection Degree (internal circuit) | IP 54 |
Protection Degree (external circuit) | IP 34 |
Color | RAL7035 |
Compressor | HIGHLY/HITACHI |
Compressor Type | Rotary |
Fans | EBMPAPST |
Mounting Method | Wall Mounting |
