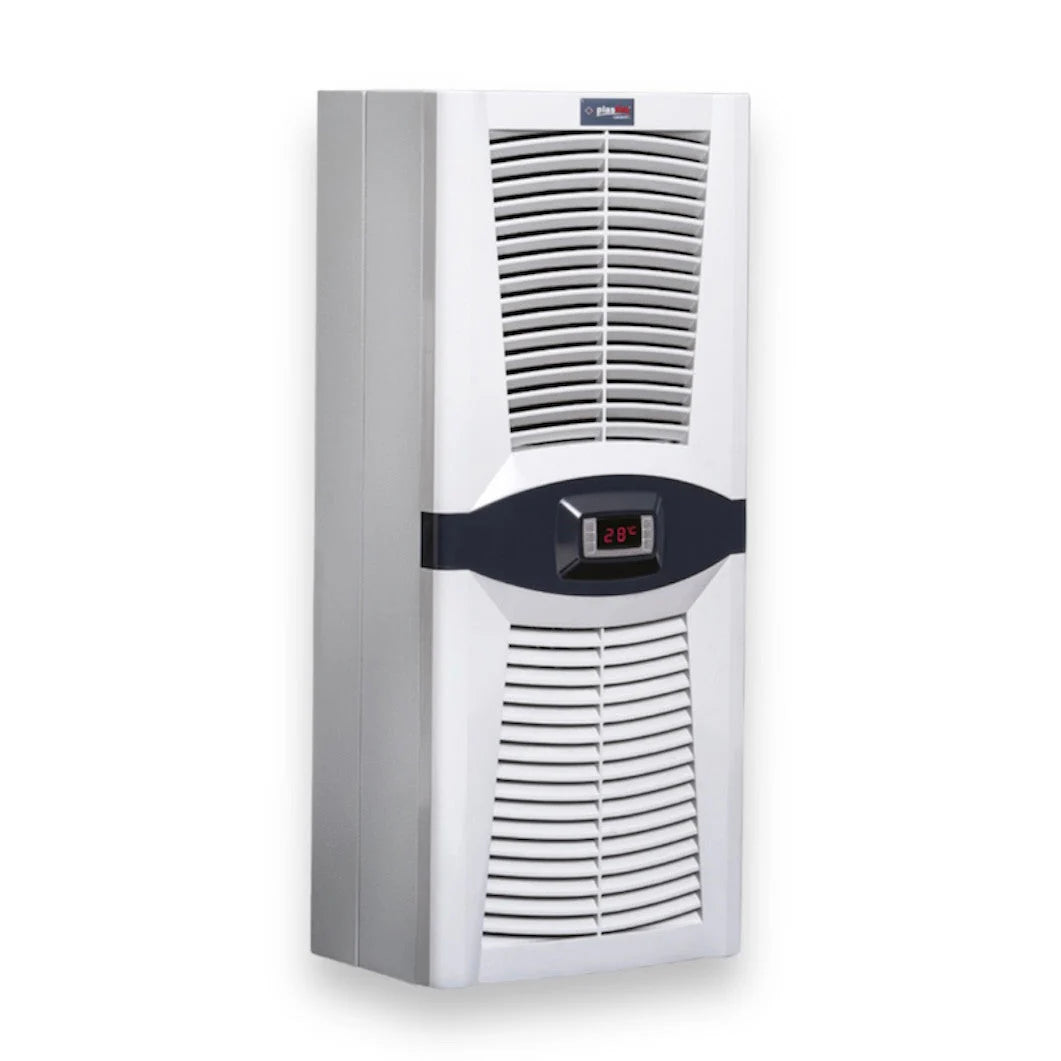

Design series air conditioner 3550W PAD3550.01
Failed to load pickup availability
"Design Series" air conditioner for switchboards / cooling units 3500 W for side or wall mounting on switchboards and control panels.
The PAD3550.01 (PLASTIM) air conditioner for distribution cabinets is equipped with the latest HIGHLY open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the distribution cabinet door.
The set includes everything needed to install the air conditioner in the cabinet - seals, drain pipe, mounting screws, power connector.
TECHNICAL DATA |
PAD3550.01 |
Cooling capacity L35 / L35 |
3500W / 11970BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Operating range |
0-55 °C |
Thermostat factory setting |
35 °C |
Difference |
4 °C |
Max. air volume in the internal circuit |
510 m³/h |
Max. air volume in the external circuit |
625 m³/h |
Type of refrigerant |
R134a |
Amount of refrigerant |
750gr |
Dimensions |
1200x430x270mm |
Weight |
47kg |
Sound level |
82dB |
Protection rating (inner circuit) |
IP 54 |
Protection rating (outer circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall mounting |
