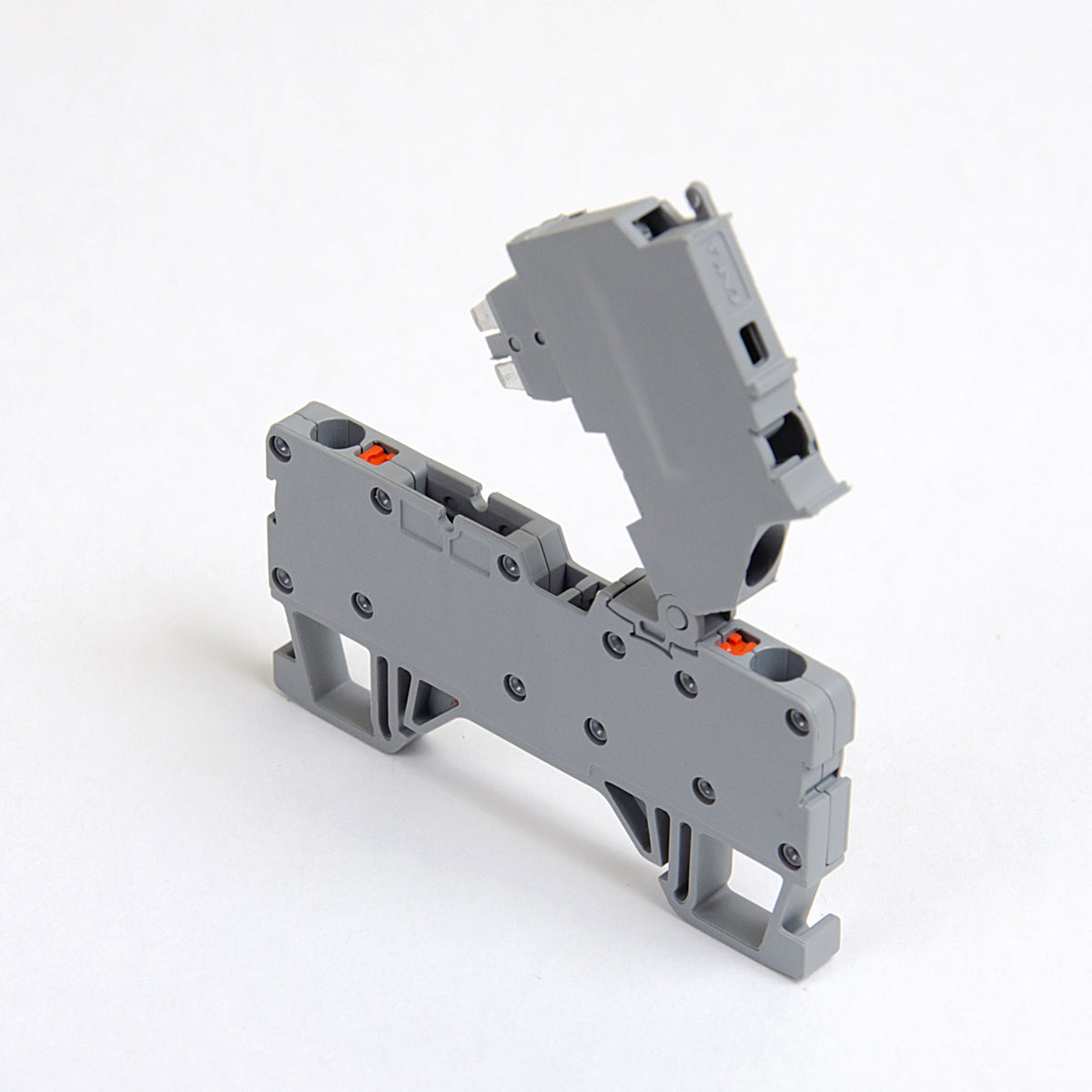

ONKA fuse terminal strip 2.5 mm2 with screw connection (fuse not included), gray, 1020223

Online payment by card – after placing your order, you will be redirected to the payment gateway and you will receive payment confirmation by email.

Cash on delivery – payment will be made to the courier of the transport company in accordance with the payment terms.

Bank transfer – we will send a pro forma invoice to your email address no later than the next business day, which will include the account number for payment.

On an invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use the latter two payment methods, please contact our manager who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, we do not charge any fees for returning goods.

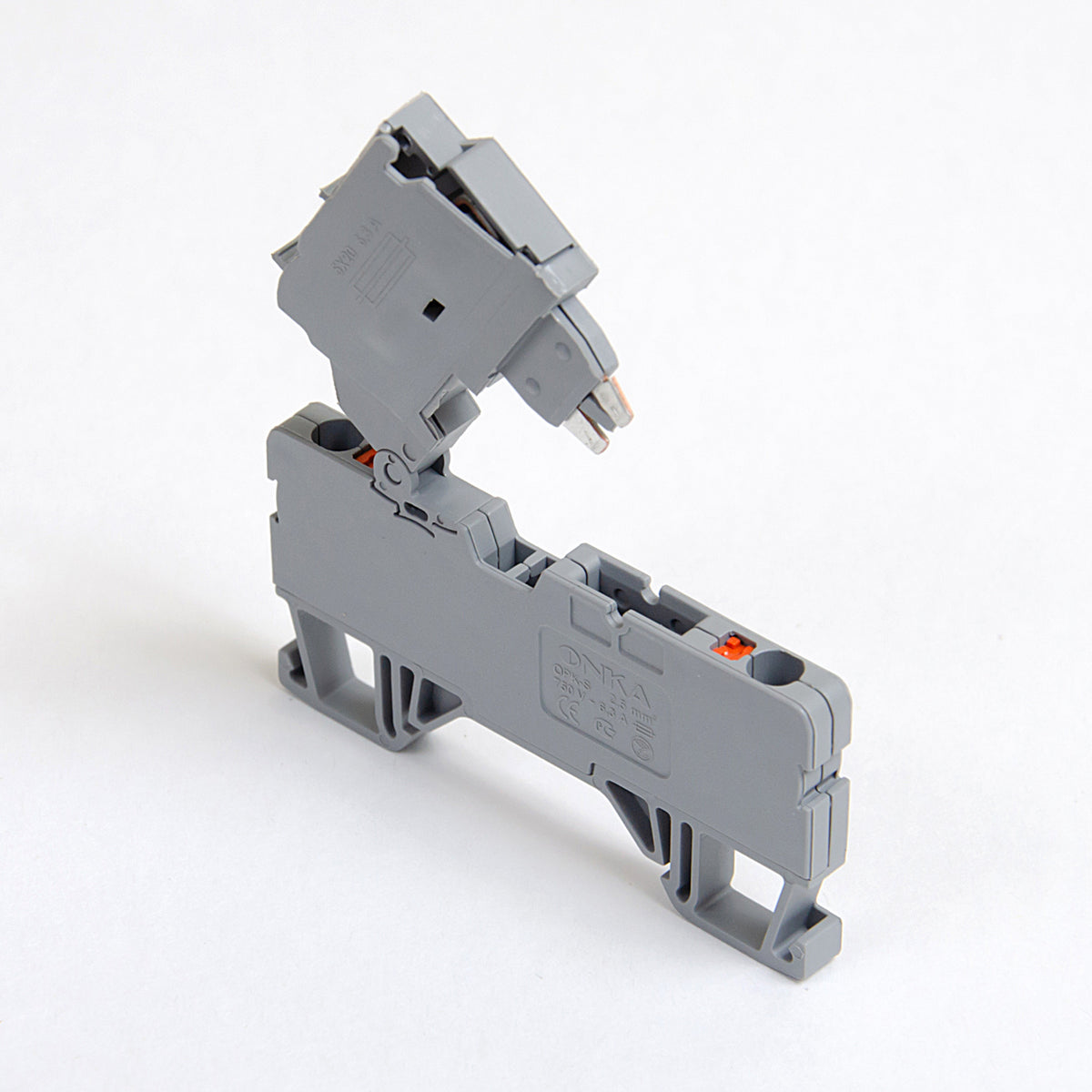

Spring screw terminal fuse terminal block (fuse not included) 2-wire, gray, ONKA, made in Turkey

Used to protect low-current AC or DC circuits. A 5x20 mm fuse is installed in the clamp with a current rating up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of connected single wire up to: 2.5 mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 9 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
