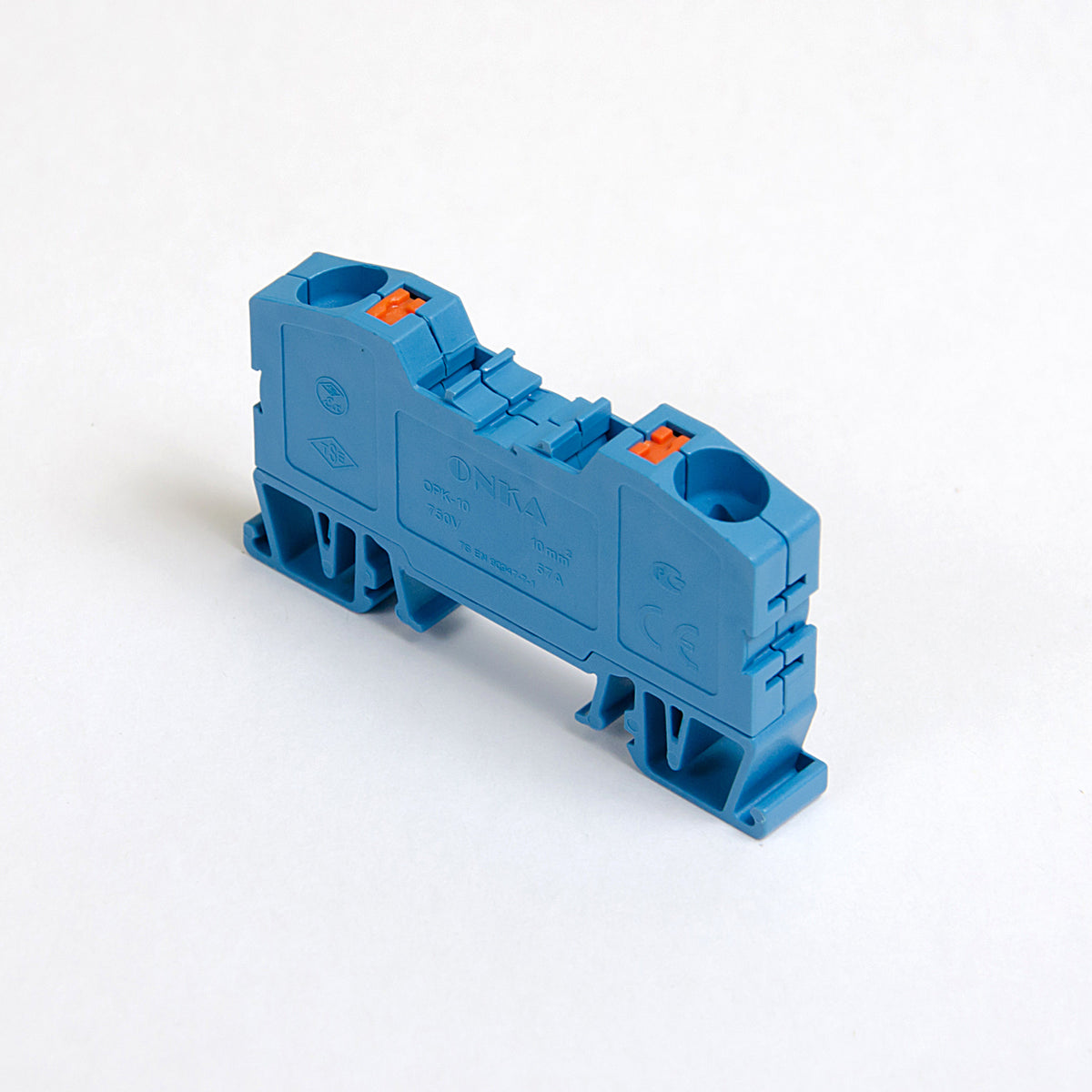

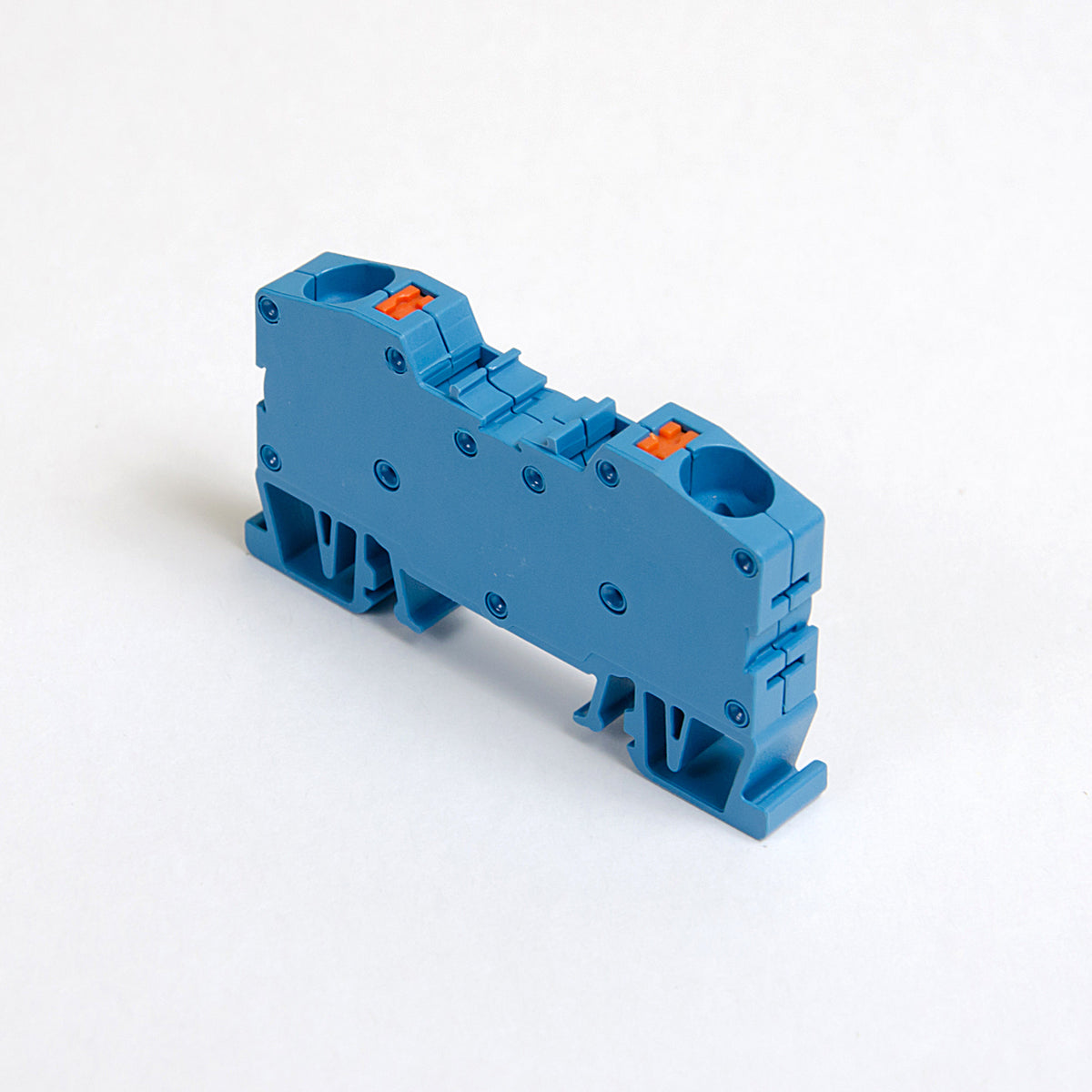

ONKA 10mm2 spring terminal block DIN rail clamp 2-wire blue, 1020047

Online payment by card – after placing your order, you will be redirected to the payment gateway and you will receive payment confirmation by email.

Cash on delivery – payment will be made to the courier of the transport company in accordance with the payment terms.

Bank transfer – we will send a pro forma invoice to your email address no later than the next business day, which will include the account number for payment.

On an invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use the latter two payment methods, please contact our manager who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, we do not charge any fees for returning goods.

Spring terminal block for busbar / 2-wire DIN rail clamp, retractable contact, blue, ONKA, made in Turkey.

ONKA terminal block/terminal is a reliable solution for anyone looking for functional and durable components in electrical installations.
Made of high-quality materials, the terminal guarantees long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of connected single conductor up to: 10mm2
Color: blue
Insulating material of main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 12mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
