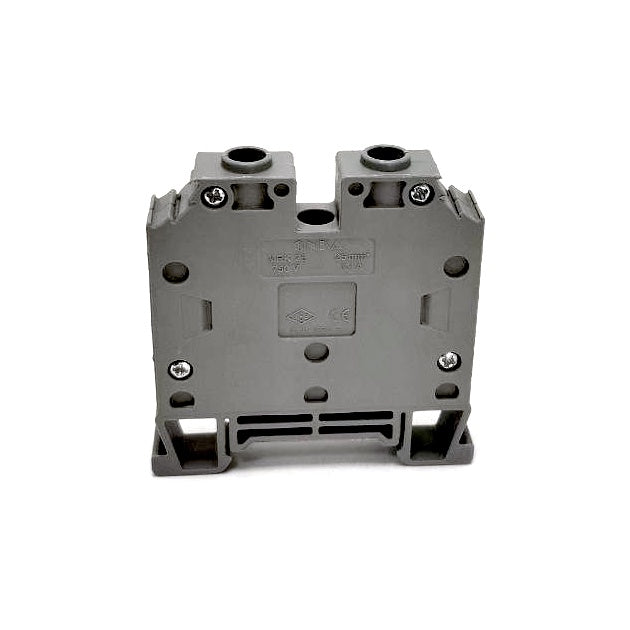

ONKA 25mm2 Terminal strip screw connection on DIN rail 2-core gray, 1010062

Online payment by card – after placing your order, you will be redirected to the payment gateway and you will receive payment confirmation by email.

Cash on delivery – payment will be made to the courier of the transport company in accordance with the payment terms.

Bank transfer – we will send a pro forma invoice to your email address no later than the next business day, which will include the account number for payment.

On an invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use the latter two payment methods, please contact our manager who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, we do not charge any fees for returning goods.

Threaded busbar connector / 2-wire DIN rail clamp gray, ONKA, made in Turkey

Compact ONKA terminal blocks provide great possibilities for connecting any wires of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors offer installation convenience and 100% connection reliability.

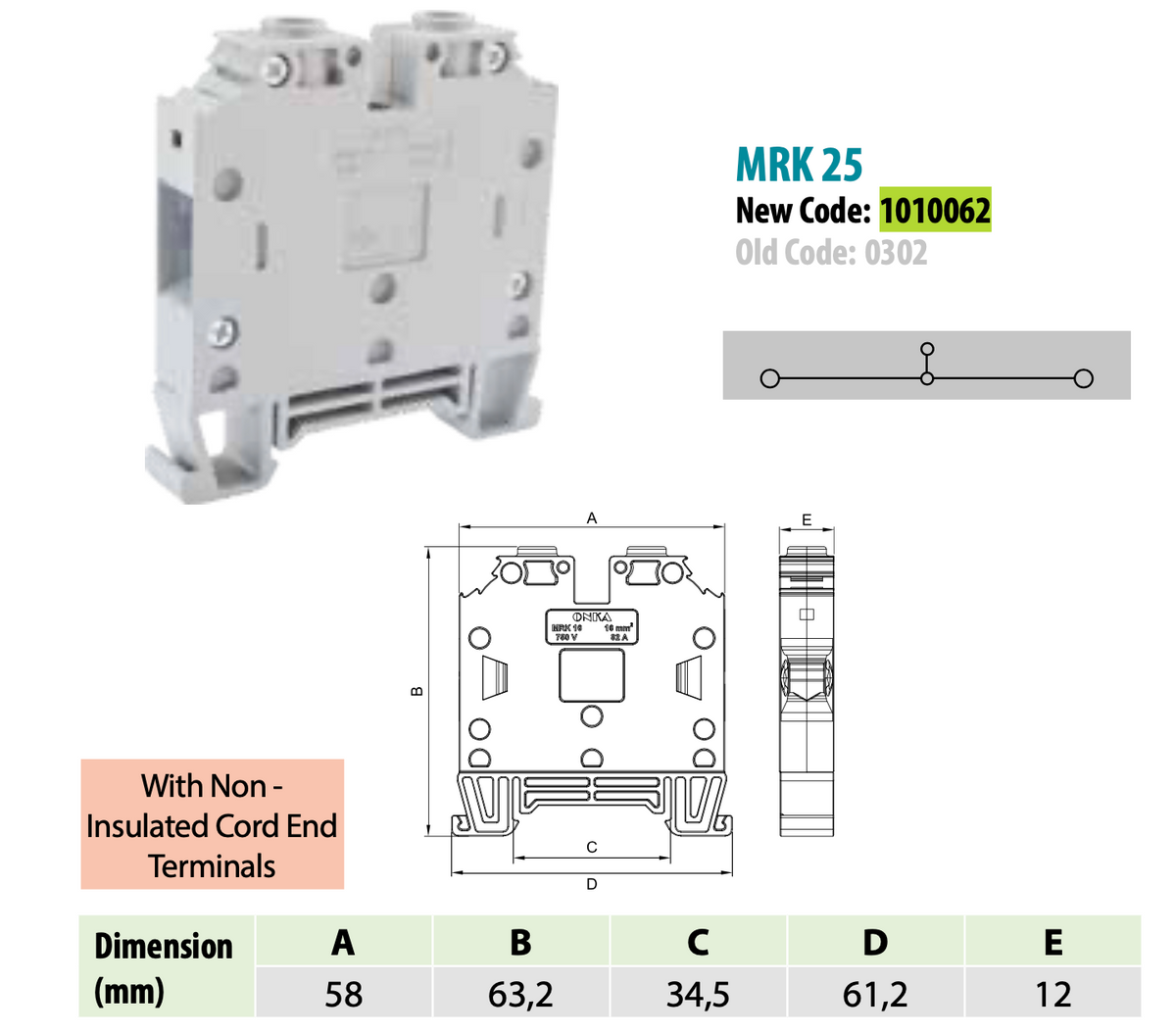

Technical parameters

Cross-section of connected single wire up to: 25mm2
Color: gray
Insulating material of main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 2.0 Nm
Connection position: side
Cable strip length: 18 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Rated current: 101A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
