ONKA 35mm2 PE Terminal strip screw connection DIN rail 2-wire gray, 1010225

Online payment by card – after placing your order, you will be redirected to the payment gateway and you will receive payment confirmation by email.

Cash on delivery – payment will be made to the courier of the transport company in accordance with the payment terms.

Bank transfer – we will send a pro forma invoice to your email address no later than the next business day, which will include the account number for payment.

On an invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use the latter two payment methods, please contact our manager who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, we do not charge any fees for returning goods.

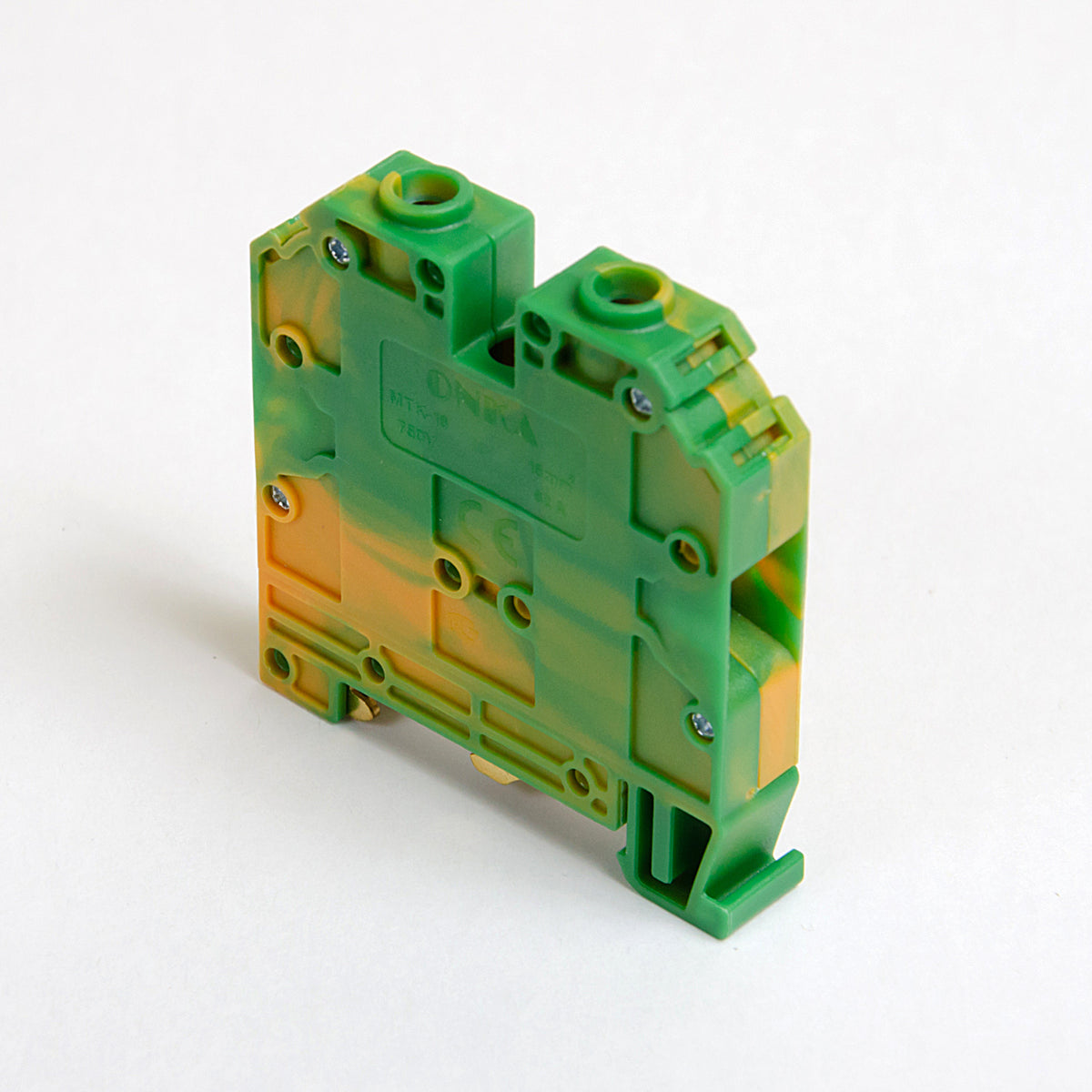

DIN Rail 2-wire green-yellow, ONKA, manufactured in Turkey

Compact installation connectors on the ONKA rail provide great possibilities for connecting any wires of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors offer installation convenience and 100% connection reliability.

Technical parameters

Cross-section of a single connected wire up to: 35mm2
Color: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 1.2 Nm
Connection position: side
Cable tape length: 16 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
