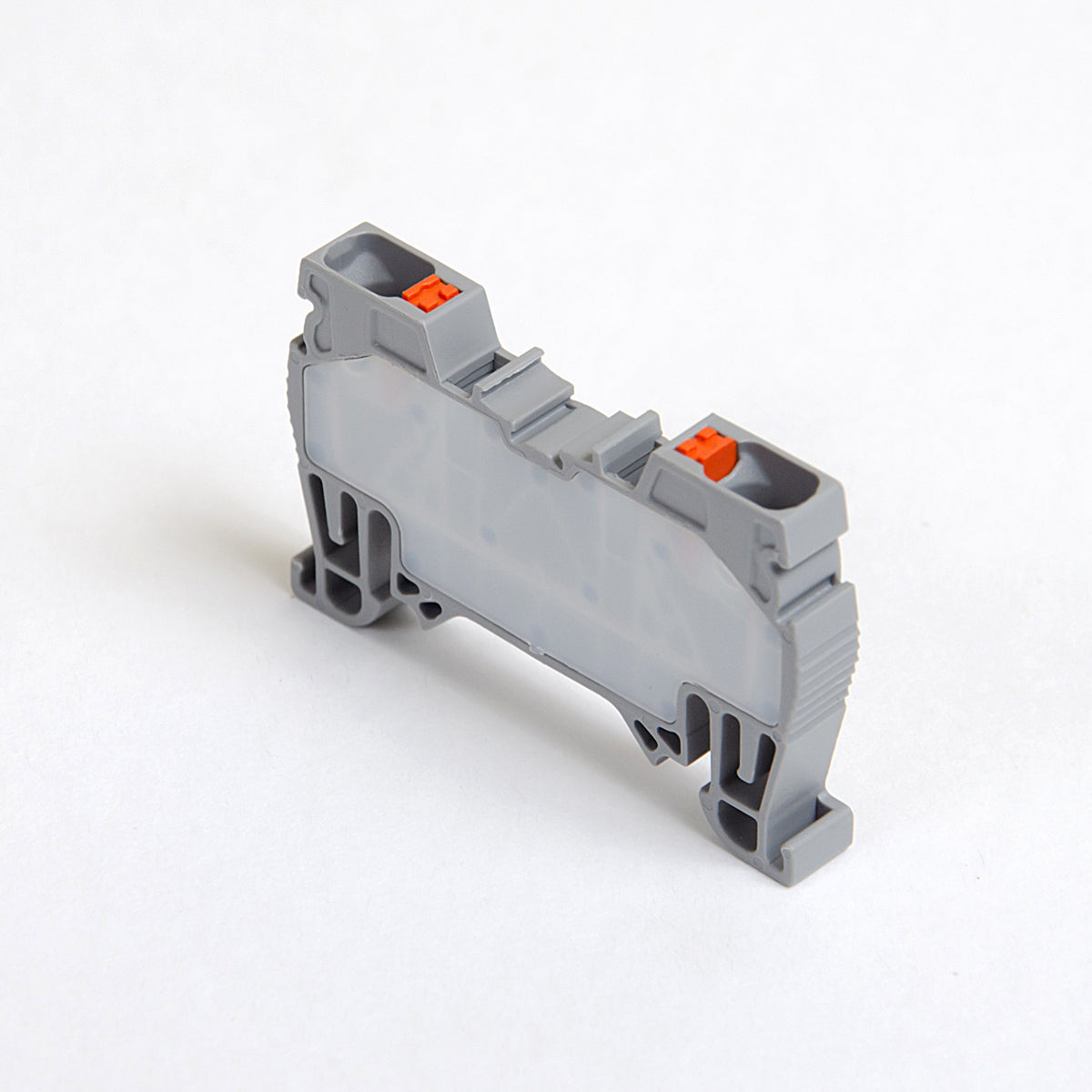

ONKA 4mm2 spring terminal strip connector terminal strip DIN rail 2-wire gray, 1020024

Online payment by card – after placing your order, you will be redirected to the payment gateway and you will receive payment confirmation by email.

Cash on delivery – payment will be made to the courier of the transport company in accordance with the payment terms.

Bank transfer – we will send a pro forma invoice to your email address no later than the next business day, which will include the account number for payment.

On an invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use the latter two payment methods, please contact our manager who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, we do not charge any fees for returning goods.

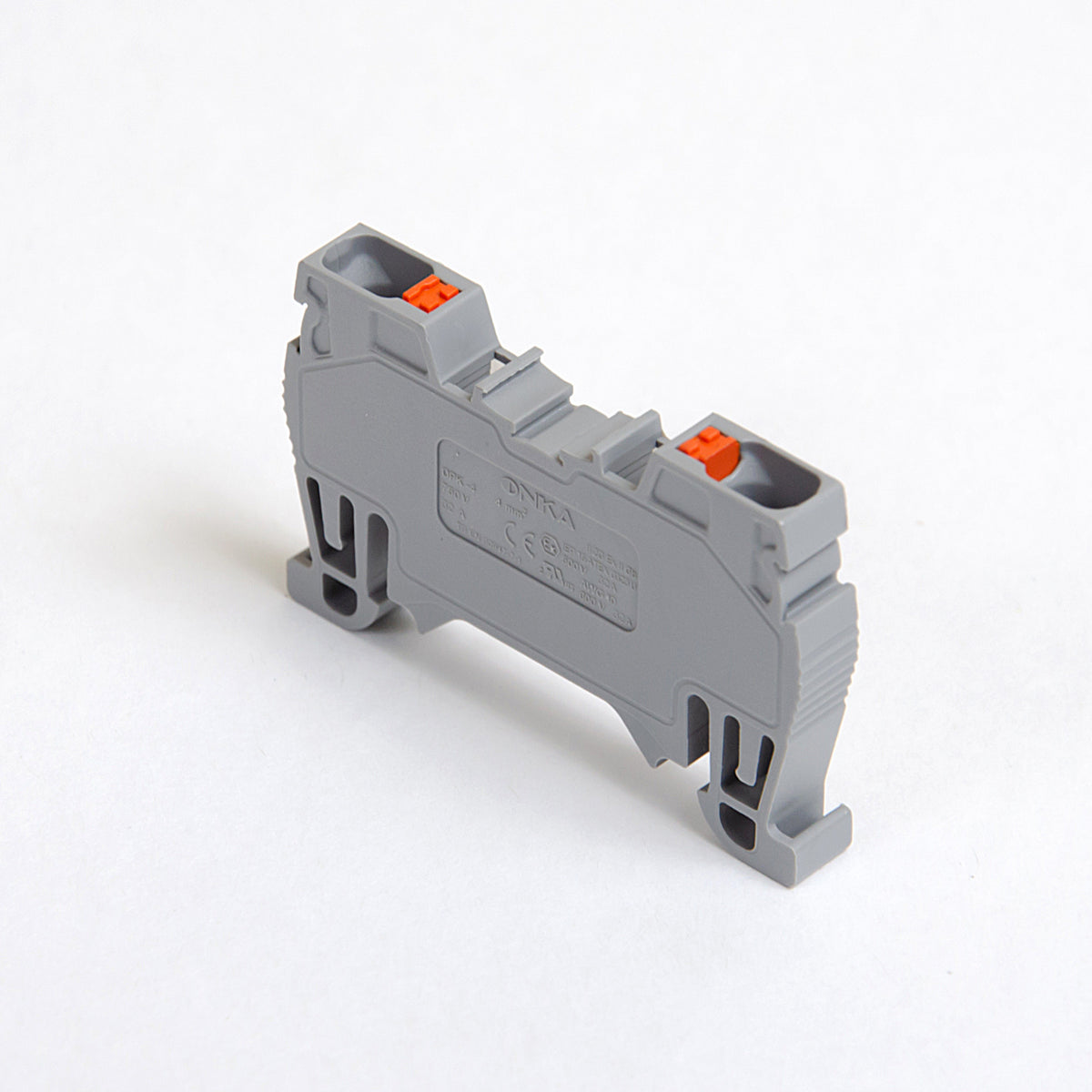

Spring terminal block busbar connector / 2-wire DIN rail clamp, retractable contact, gray, ONKA, made in Turkey

Compact ONKA terminal blocks provide great possibilities for connecting any wires of different cross-sections. The transparent housing facilitates checking the correct arrangement of the wires. Original ONKA quick connectors offer installation convenience and 100% connection reliability.

Technical parameters

Cross-section of connected single wire up to: 4mm2
Color: gray
Insulating material of main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 9mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
