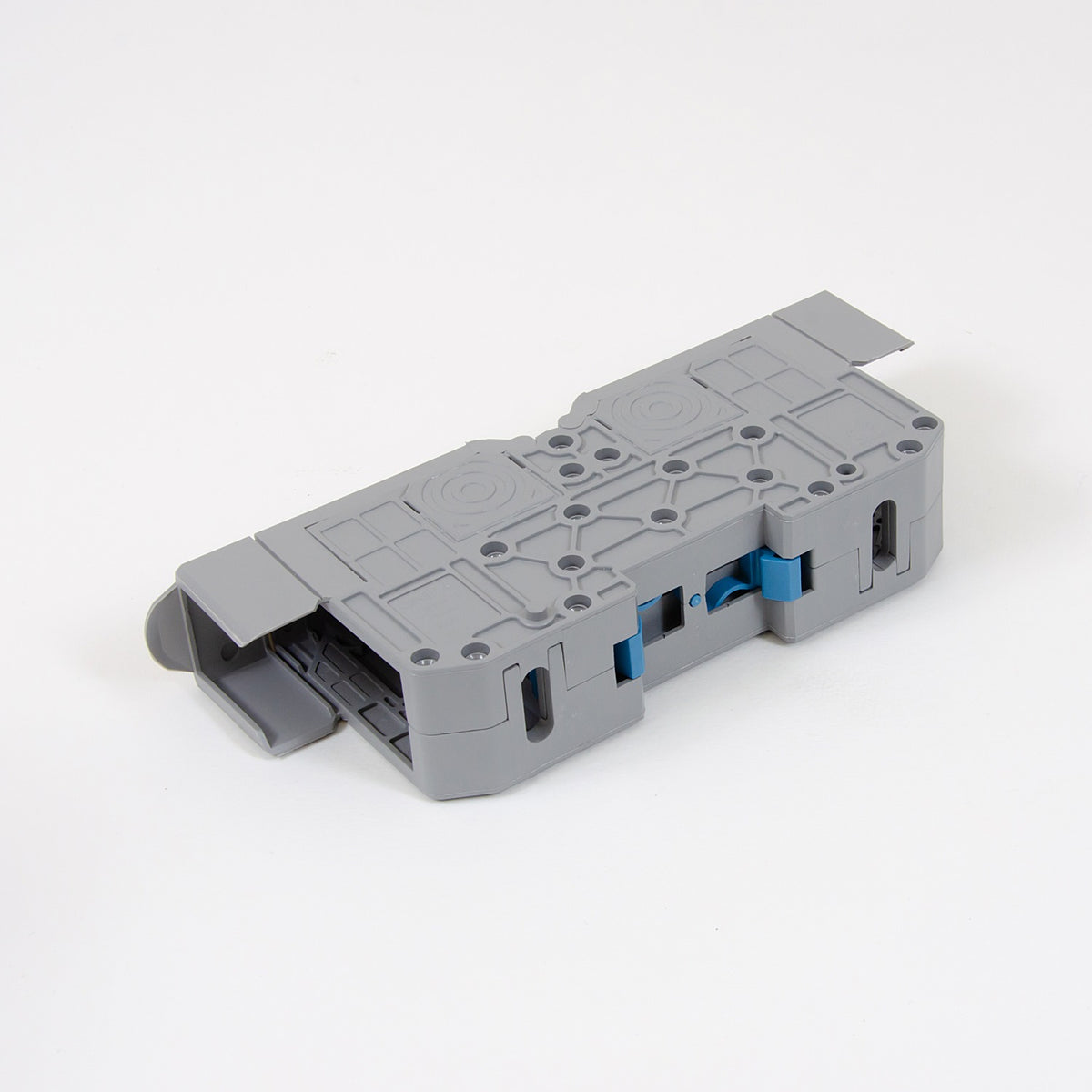

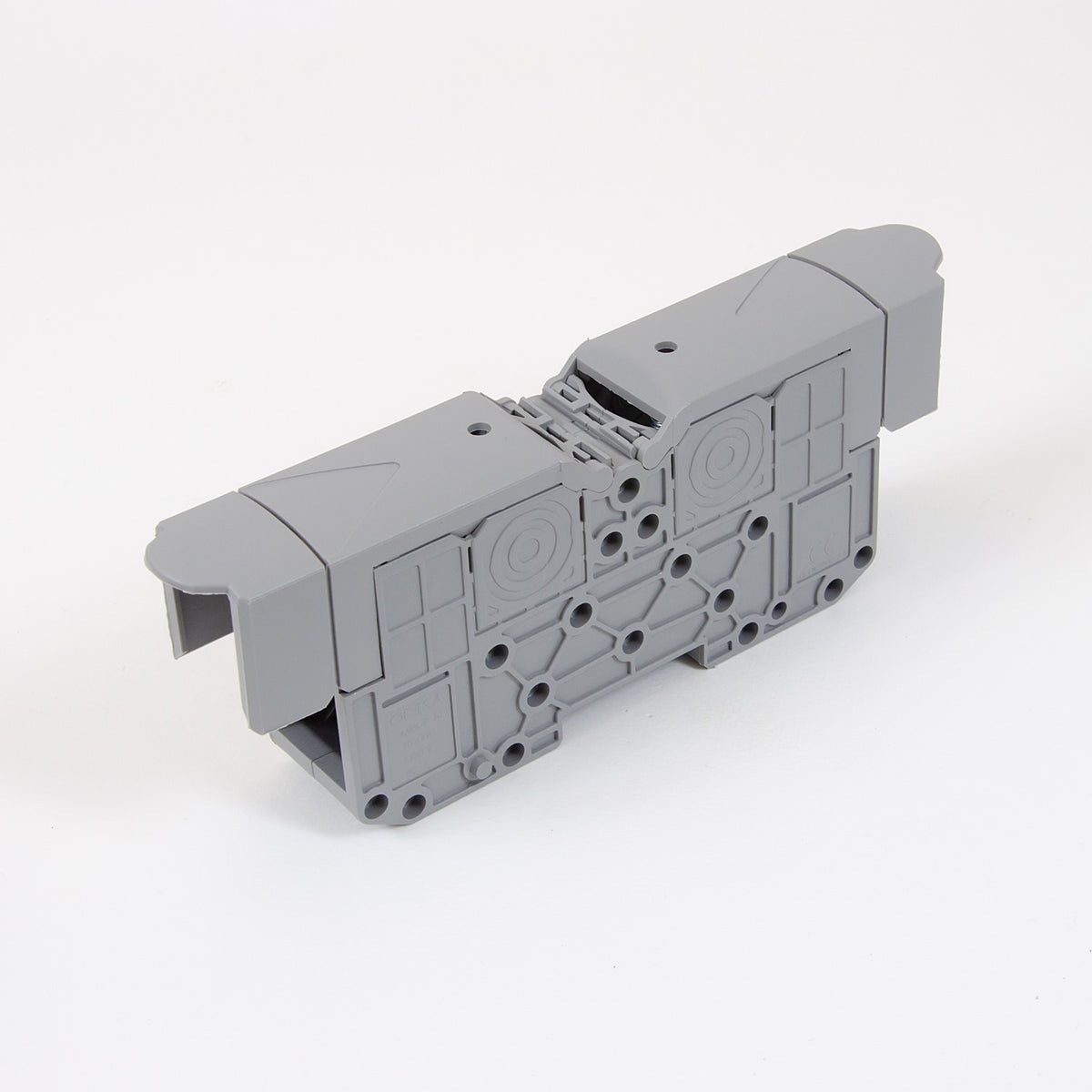

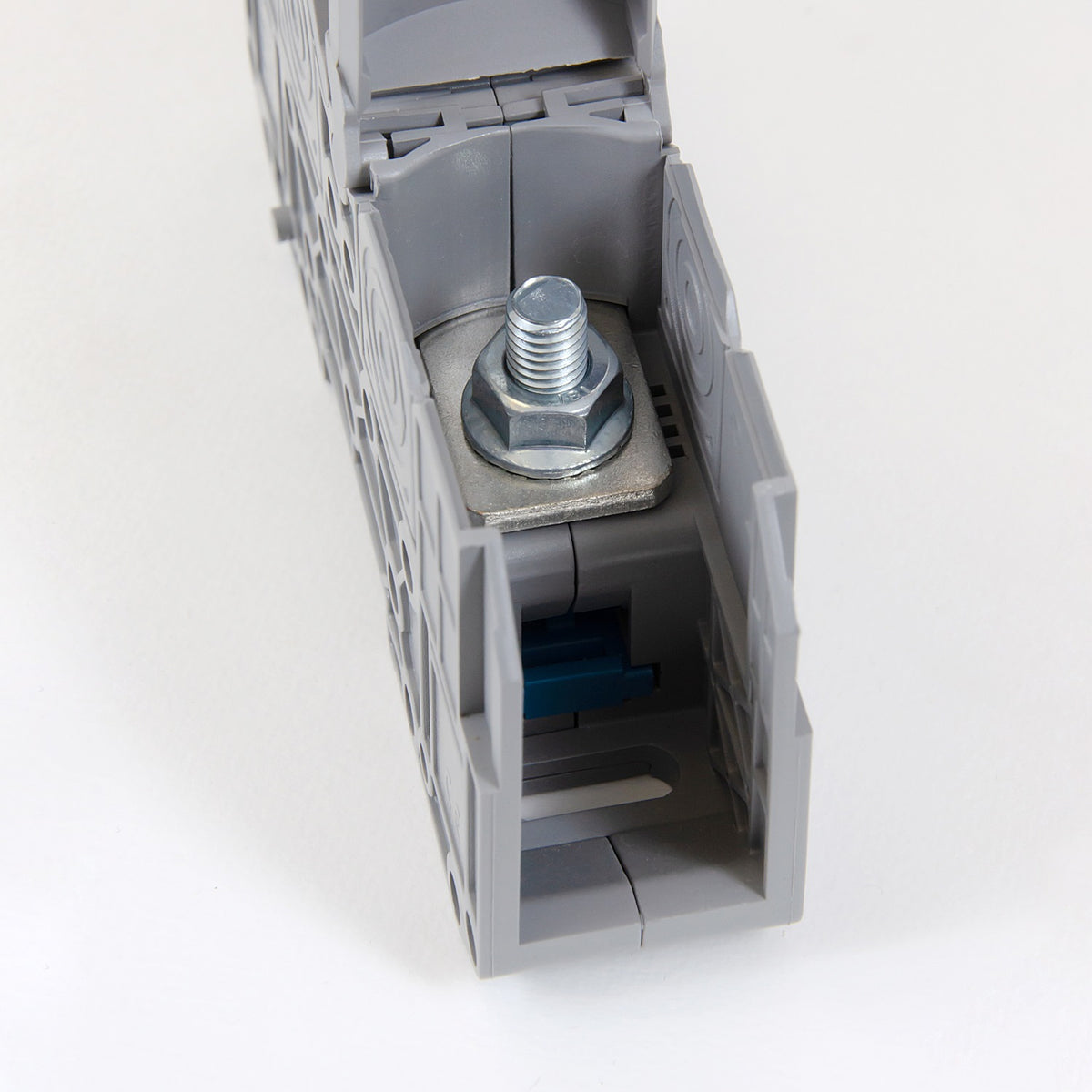

M8, 70mm2, threaded busbar connector / DIN rail clamp with protective cover, gray, ONKA, made in Turkey

Compact ONKA busbar connectors provide great possibilities for connecting any wires of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors offer installation convenience and 100% connection reliability.

Technical parameters

Cross-section of connected single wire up to: 70mm2
Color: gray
Insulating material of main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: side / side
Rated voltage: 1000V
Rated current: 192A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
