Vendor: Plastim

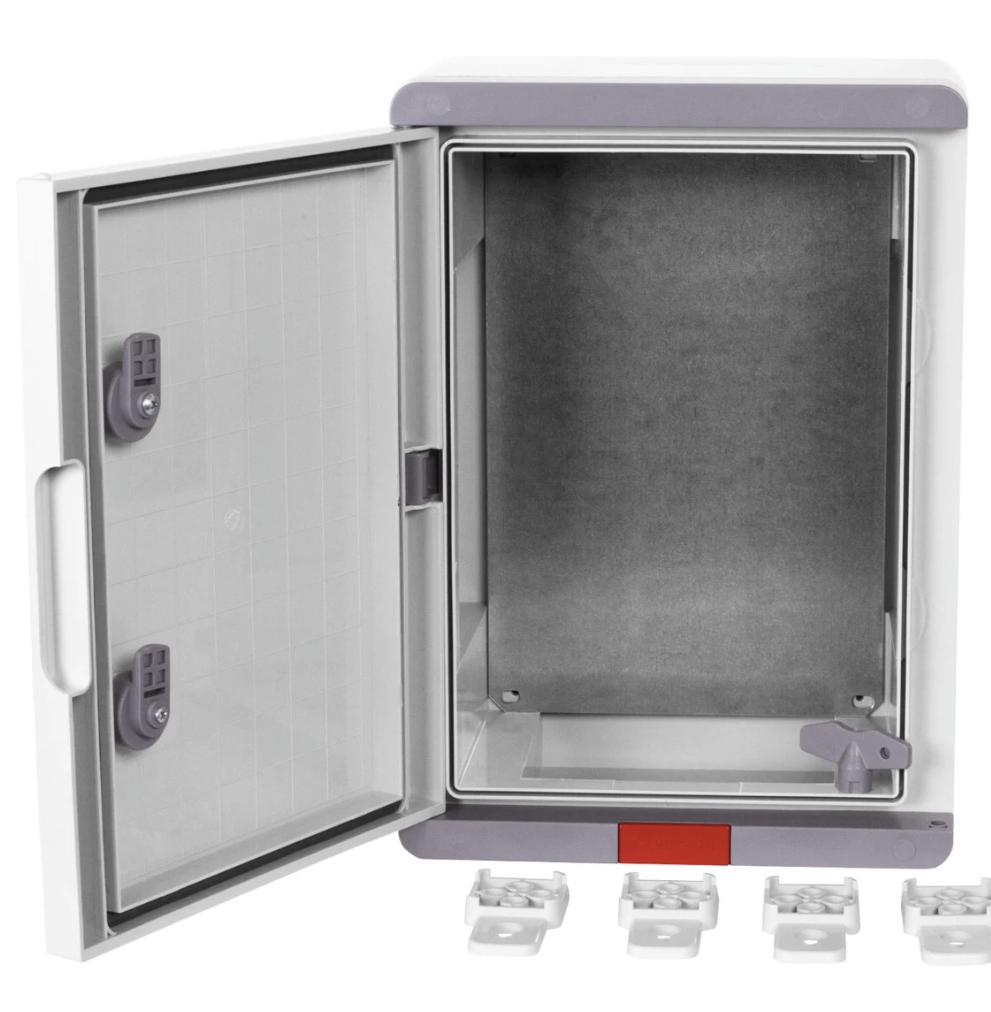

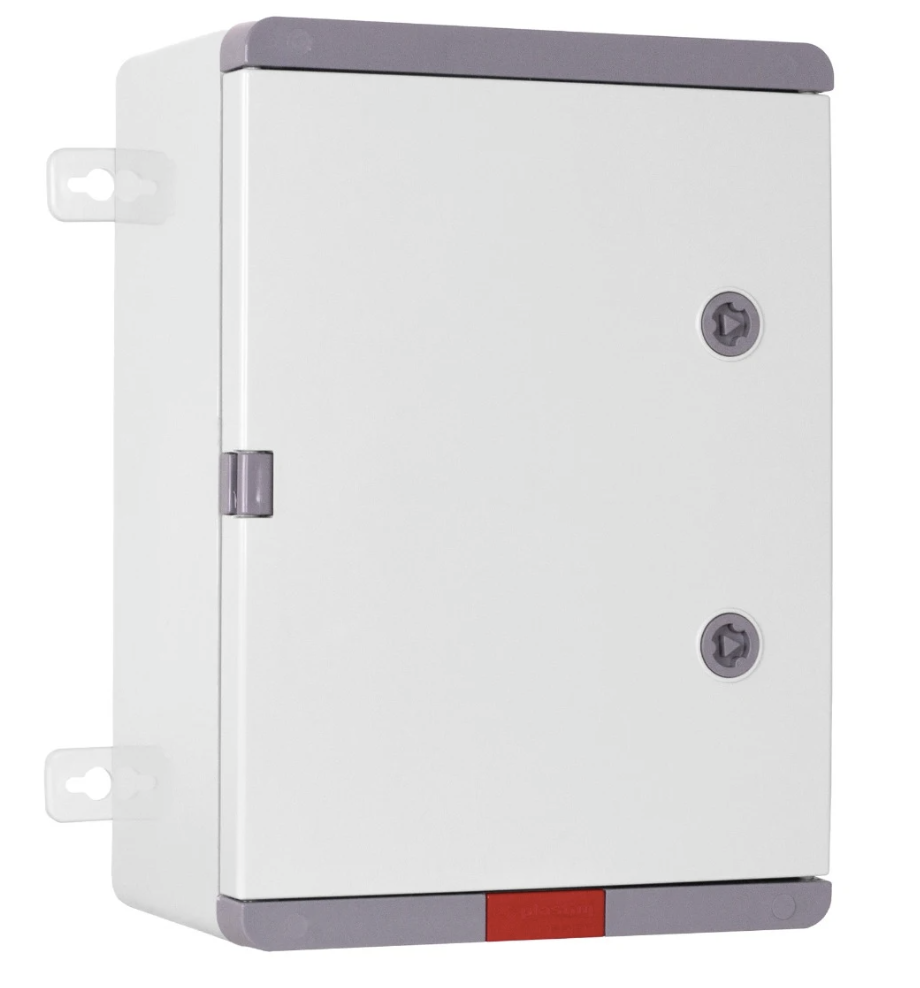

Plastic distribution cabinet with gray doors, Design Pro series, PD253515, IP67

Barcode: PD253515
122,74 zł
122,74 zł
73 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty
Shock-resistant sealed plastic enclosure with IP67 protection rating and mounting panel, Plastim (Turkey).


The plastic enclosure with an IP67 protection rating has several important advantages, especially when used in harsh conditions:


High protection against moisture and dust:


The IP67 protection rating means the enclosure is completely dust-tight and can withstand short-term immersion in water up to 1 meter deep for 30 minutes, making it ideal for installation in damp or dusty locations - for example, outdoors, in industrial areas, or near water reservoirs.


Corrosion resistance:

Plastic does not corrode, unlike metal panels, which is especially valuable in aggressive environments - near the sea, in chemical plants, or in high-humidity companies.


Ease and simplicity of installation:

The plastic enclosure is significantly lighter than its metal counterpart, which simplifies transport and installation, especially in hard-to-reach places.


Dielectric properties:

Plastic is non-conductive, which increases safety when working with electrical equipment and reduces the risk of short circuits.


UV resistance:
When using a special ultraviolet-resistant plastic, the enclosure retains its properties for a long time, even when constantly exposed to sunlight.

Technical properties

Resistance to: chemicals, alkalis, oils, salts, etc.
Rated voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35 °C to +65 °C
Material: HB ABS
Mounting plate: 1 mm galvanized steel
Ingress protection rating IP: IP67
Impact protection rating IK: IK08
Color: gray RAL7035

Application examples

Wet and dusty environments

Electrical shielding in car washes, swimming pools, water parks, fountains.
Mounting boxes for controlling irrigation systems and pumping stations.
Installations in food processing plants where regular wet cleaning and disinfection are performed.
Industrial installations

Equipment protection in dusty workshops, concrete plants, and metallurgical facilities.
Protective installations in areas with aggressive environments (e.g., chemical plants).
Marine and port infrastructure

Protection of electrical cables on platforms, in ports, and on ships.
Use in coastal areas with high humidity and exposure to salty air.
Construction sites

Temporary power distribution units for powering construction machinery in harsh weather conditions.
Underground installations
https://files.principalelektrik.org/Plastim-Electrical-Distribution-DataSheet.pdf
