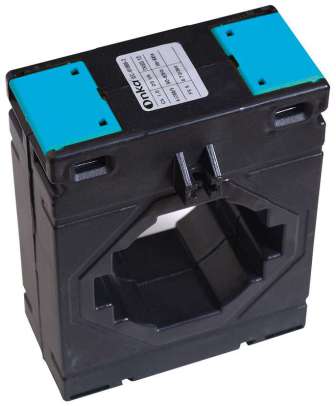

Current transformer ONKA - CURRENT TRANSFORMER 600/5A, 60MM, CLASS 0.5S, 5VA (TK606005304 / 80011767)
- Regular price
- 115,60 zł 93,98 zł excl. VAT
- Regular price
-
- Sale price
- 115,60 zł 93,98 zł excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Slide-on measuring current transformer for rated primary currents of 600 A, secondary currents of 5 A, rated power of 5 VA, available in accuracy class 0.5S, ONKA.
ONKA TK606005304 is a plug-in/window-type current transformer designed for indirect measurement of sinusoidal AC current in power supply and measurement systems. It is suitable for residential, commercial, and light industrial distribution boards.
Technical specifications
| Parameter | Value |
|---|---|
| Rated primary current | 600 A |
| Secondary current | 5 A |

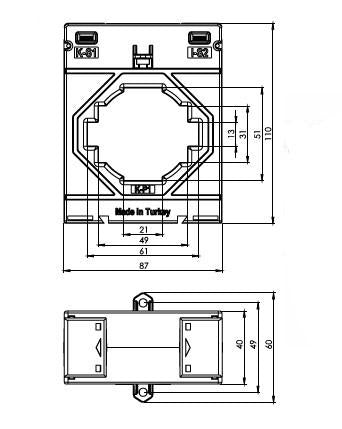

| Busbar mounting/inner diameter | Ø 60 mm |
| Rated power (secondary burden) | 5 VA |
| Accuracy class | 0.5S |
| Mounting type | Window-type / slide-on, mounting feet included |
Product description
The transformer converts primary current up to 600 A into a standard secondary current of 5 A, enabling safe and convenient connection of:
-
Meters and ammeters
-
protection and automation systems
-
monitoring and measuring devices
Installation is carried out by sliding it onto the busbar, and the supplied mounting feet eliminate the need to interrupt the main circuit. The compact design enables installation even in cabinets with limited space.
Advantages
-
Supports currents up to 600 A - suitable for medium loads
-
Standard 5 A output - compatible with most measuring and control devices
-
Accuracy class 0.5S - reliable and accurate measurements suitable for measurement and control
-
Compact size (60 mm busbar) - suitable for cabinets with limited space
-
Easy installation - snap-on housing + mounting feet, without interrupting the main circuit
-
Stability and compatibility - suitable for continuous current monitoring and measurement systems
Recommended application
-
Distribution boards in residential, commercial, and light industrial installations
-
Power measurement, load monitoring, and protective control systems
-
Connecting meters, ammeters, and automation systems requiring a stable output signal
